9. A gamepad

Pip walks with W, A, S and D, but many players would rather hold a gamepad. A key is either down or up, so Pip walks at full speed or not at all. A stick tells you how far the player pushes it, so Pip can creep or run. In this chapter, you:

  • walk Pip with the left stick, as well as the keys,
  • make the speed follow how far the stick is pushed,
  • quit with Start, as Escape does.

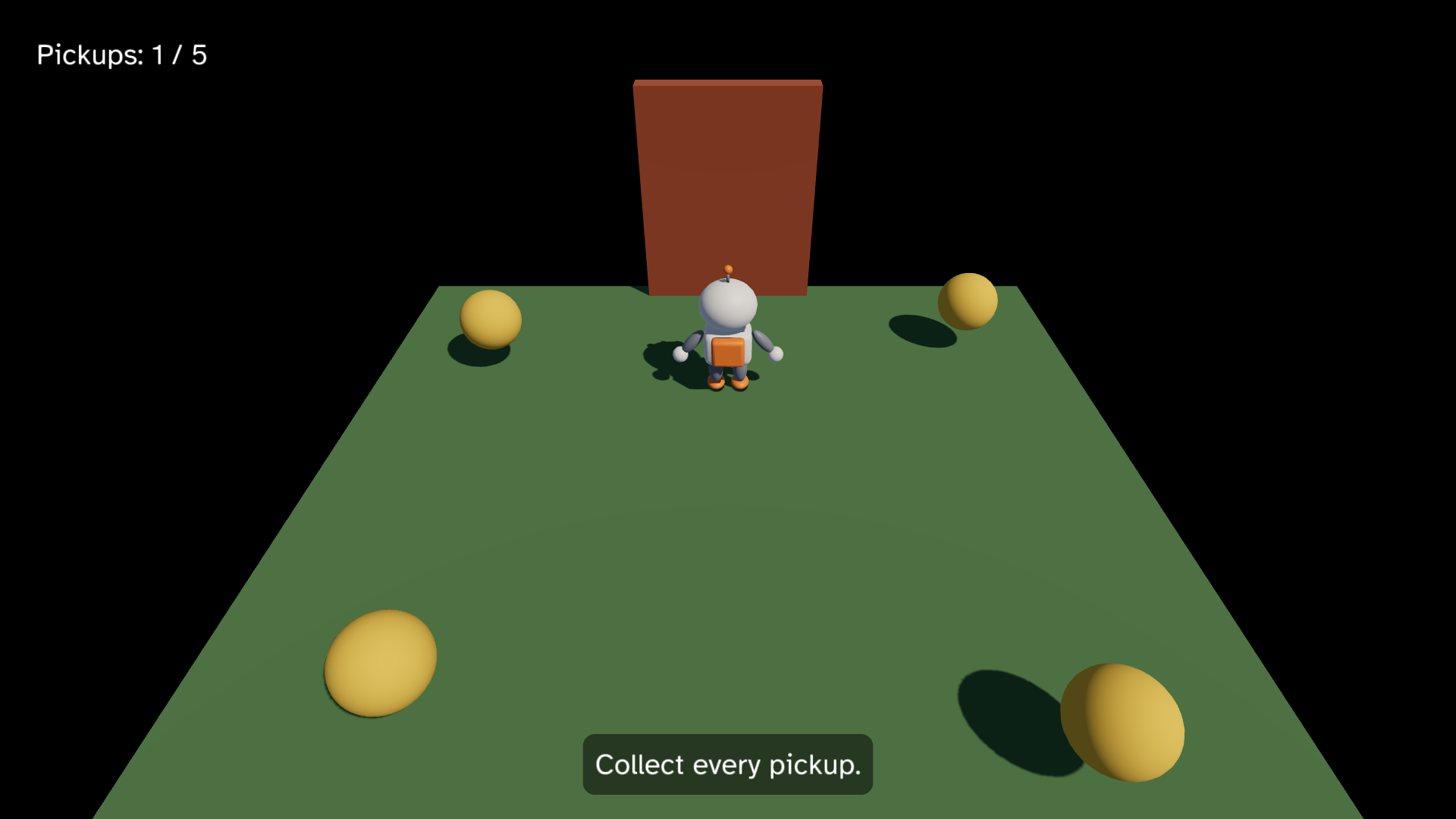

Pip walks toward the door, with “Pickups: 1 / 5” at the top left

This chapter starts from your app from 8. Sound. The full app is examples/tutorial/09-gamepad/main.roc. To see every change, compare the two chapter apps:

git diff --no-index examples/tutorial/08-sound/main.roc examples/tutorial/09-gamepad/main.roc

The header, the assets and the Model stay the same. You need no new asset: the host reads the pads for you. Plug in an Xbox, PlayStation or Switch Pro pad, or connect one over Bluetooth. Gamepads lists which pads each OS reads.

The imports

Import pf.Button:

import cam.Camera as Cam
import linalg.Vec3 as V
import linalg.Quat
import mesh.Mesh as Mesh
import ui.Ui
import pf.Vocabulary exposing [Command, Contact, Element, Manifest, Vec3]
import pf.Button
import pf.Collider
import pf.Config
import pf.Draw
import pf.Input
import pf.Key
import pf.Launch
import pf.Light
import pf.Query
import pf.QueryResults
import pf.Scene
import pf.Sound
import pf.Speaker

Button names the buttons of a pad, as Key names the keys.

Walk with the stick

The Input has a list, gamepads, with one Gamepad for each pad that is connected. Each Gamepad has a left_stick with an x and a y, each from -1 to 1. Pushed all the way right, the stick reads x: 1.0. Pushed all the way up, it reads y: 1.0. At rest it reads 0, because the host ignores the small wobble of a stick near its centre.

In chapter 3, walk turned the keys into a direction and normalized it, so Pip always walked at speed. Now the stick adds to the keys:

# Units each second.
speed : F32
speed = 2.5

# Pip stops this far from the centre, inside the edge of the ground.
edge : F32
edge = 2.7

# The left sticks of all the pads, added up.
left_stick : Vocabulary.Input -> { x : F32, y : F32 }
left_stick = |input| List.fold(input.gamepads, { x: 0.0, y: 0.0 }, |sum, pad| { x: sum.x + pad.left_stick.x, y: sum.y + pad.left_stick.y })

# A vector longer than 1 shrinks to length 1. A shorter one stays as it is.
clamp_to_disc : Vec3 -> Vec3
clamp_to_disc = |v|
	if V.length(v) > 1.0 {
		V.normalize(v)
	} else {
		v
	}

# W and the stick pushed up move away from the camera, toward -z.
walk : Model, Vocabulary.Input, F32 -> Model
walk = |model, input, dt| {
	stick = left_stick(input)
	dir = clamp_to_disc({ x: Key.axis(input, A, D) + stick.x, y: 0.0, z: Key.axis(input, W, S) - stick.y })
	if dir == V.zero {
		model
	} else {
		moved = V.add(model.pos, V.scale(dir, speed * dt))
		{ ..model, pos: { x: keep_on_ground(moved.x), y: 0.0, z: keep_on_ground(moved.z) }, yaw: F32.atan2({ x: dir.z, y: dir.x }) }
	}
}
  • left_stick adds up the left sticks of all the pads. With no pad, the list is empty and the sum is 0, so the keys work as before.
  • The stick’s y is up, but walking away from the camera is toward -z, so walk subtracts stick.y from the z axis.
  • walk no longer normalizes dir. A stick pushed halfway gives a dir of length 0.5, and Pip walks at half speed.
  • clamp_to_disc keeps dir from growing past length 1. Without it, W and D together would give a length of about 1.4, and so would W with the stick pushed up. Pip would walk faster on a diagonal, or with two inputs at once.

Keys still give a length of 0 or 1, so with the keys alone Pip walks as it did in chapter 8.

Quit with Start

Escape quits from the keyboard. Make Start quit from a pad:

# Escape on the keyboard or Start on any pad quits.
quit : Vocabulary.Input -> List(Command)
quit = |input| if Key.pressed(input, Escape) or Button.pressed_any(input, Start) [Quit] else []

In step, call quit(input) in place of quit_on_escape(input). The win message in status_text now says “Press Escape or Start to quit.”

A pad button is held or pressed, as a key is. Button.pressed_any is true in the first step after Start went down, so one press quits once.

Slots and pressed_any

Each Gamepad has a slot, from 0 to 3. The first pad that connects takes slot 0, the next one slot 1, and so on. A pad keeps its slot while it stays connected, and a new pad takes the lowest free slot. The slot tells two players apart: in a game for two, the pad in slot 0 is player one and the pad in slot 1 is player two.

The functions of Button come in two kinds:

  • Button.held(gamepad, b) and Button.pressed(gamepad, b) ask one pad. Use them when it matters who pressed the button, such as in a game for two players.
  • Button.held_any(input, b) and Button.pressed_any(input, b) ask every pad. Use them in a game for one player.

Pip’s game has one player, so it asks any pad, and walk adds up the sticks of all the pads. The player can pick up any pad, and the game does not need to know its slot.

Test the gamepad

A Gamepad is a record, so you test the stick and the buttons without a pad. Add these tests below the tests from chapter 8:

with_pads : List(Vocabulary.Gamepad) -> Vocabulary.Input
with_pads = |pads| { ..Input.empty, gamepads: pads }

# The stick halfway up walks Pip toward -z at half speed.
expect {
	half_up = { ..Input.idle_gamepad, left_stick: { x: 0.0, y: 0.5 } }
	moved = step(start, with_pads([half_up]), QueryResults.empty, 0.1).model
	near(moved.pos.z, -0.125) and near(moved.pos.x, 0.0) and near(moved.yaw, pi)
}

# The stick all the way right walks Pip toward +x at full speed.
expect {
	right = { ..Input.idle_gamepad, left_stick: { x: 1.0, y: 0.0 } }
	moved = step(start, with_pads([right]), QueryResults.empty, 0.1).model
	near(moved.pos.x, 0.25) and near(moved.pos.z, 0.0)
}

# W and the stick up together walk Pip no faster than W alone.
expect {
	up = { ..Input.idle_gamepad, left_stick: { x: 0.0, y: 1.0 } }
	both = { ..with_pads([up]), held: [Key.code(W)] }
	moved = step(start, both, QueryResults.empty, 0.1).model
	near(V.length(moved.pos), 0.25)
}

# A pad at rest leaves Pip where it is.
expect step(start, with_pads([Input.idle_gamepad]), QueryResults.empty, 0.1).model == start

# Start pressed on any pad quits, here on the pad in slot 2.
expect {
	start_pressed = { ..Input.idle_gamepad, slot: 2, pressed: [Button.code(Start)] }
	step(start, with_pads([Input.idle_gamepad, start_pressed]), QueryResults.empty, 0.1).commands == [Quit]
}

# Start held from an earlier step does not quit again.
expect {
	start_held = { ..Input.idle_gamepad, held: [Button.code(Start)] }
	step(start, with_pads([start_held]), QueryResults.empty, 0.1).commands == []
}

Input.idle_gamepad is a pad in slot 0 with no button down and the sticks at rest. Each test copies it and changes only the fields it needs. A Gamepad holds button codes, as the Input holds key codes, so the tests make them with Button.code. Also change the test of the win message to “You win! Press Escape or Start to quit.”

Run the tests:

roc test main.roc

Play the game

In pip/, run:

roc main.roc

Push the left stick a little, and Pip creeps. Push it all the way, and Pip walks as fast as with the keys. Collect the pickups and walk through the door, then press Start to quit.

If Pip doesn’t move, check that the game window is in front: on macOS, the pad sends nothing to a window in the back. Then read the limits for your OS in Gamepads. On Windows, a pad that you plug in can take a second to appear.

Next, read 10. Animation. It plays the Idle and Walk Clips on Pip, so it walks instead of gliding. For the triggers, the slots and the Bridge, read Gamepads.
