7. A HUD

The game works, but it tells the player nothing. You can’t see how many pickups are left, that the door is open, or that you have won. In this chapter, you add a HUD: text that sits over the game. You use:

the ui field of the Scene, which the host draws over the 3D view,
the Box and Text Elements, which build the UI as a tree,
the ui package, which gives the starting values for a Box and a Text.

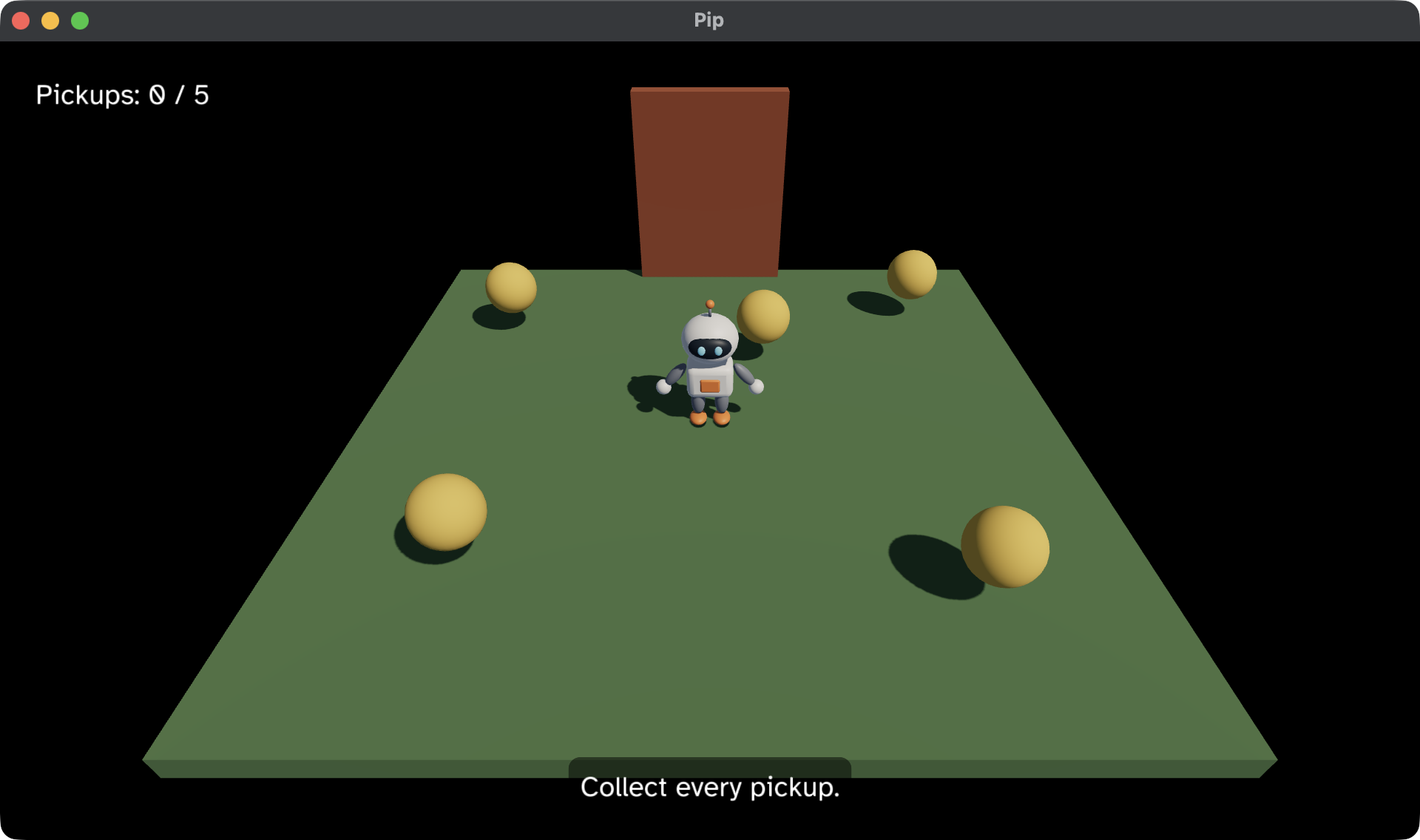

Pip on the ground, with “Pickups: 0 / 5” at the top left and “Collect every pickup.” at the bottom

This chapter starts from your app from 6. The door and the win. The full app is examples/tutorial/07-hud/main.roc. To see every change, compare the two chapter apps:

git diff --no-index examples/tutorial/06-door/main.roc examples/tutorial/07-hud/main.roc

pip.glb stays the same.

The header and the imports

Add the ui package to the header:

app [init, launch, loaded, step, view] { cam: "https://github.com/Pixelsprout/rocco-engine/releases/download/v0.6.0/camera-QiJqL4WFPQGUbBCMZ5bzjdLHhgRz7BiUw1ngwxWwHtP.tar.zst", linalg: "https://github.com/Pixelsprout/rocco-engine/releases/download/v0.6.0/linalg-4N62Pw77Sky6ba8RiBfvULjHuAQeQiqHbUor7qSeor7F.tar.zst", mesh: "https://github.com/Pixelsprout/rocco-engine/releases/download/v0.6.0/mesh-5Fmg6uFHADmSBmZxNWDg25VStK6mU7YqhkWEXHjMEGNP.tar.zst", pf: platform "https://github.com/Pixelsprout/rocco-engine/releases/download/v0.6.0/platform-2gvPTPztQ7D8yQsMvRTD4rBKS8VmSwMCPZ432eWzNNtJ.tar.zst", roc: "nightly-2026-10-11-7d256b9", ui: "https://github.com/Pixelsprout/rocco-engine/releases/download/v0.6.0/ui-5msrKWjNRwuEBomX2R1CBFRycCCjrQCPjhEvJXtwWbU6.tar.zst" }

Then import ui.Ui, and add Element to the exposed types:

import cam.Camera as Cam
import linalg.Vec3 as V
import linalg.Quat
import mesh.Mesh as Mesh
import ui.Ui
import pf.Vocabulary exposing [Command, Contact, Element, Manifest, Vec3]
import pf.Collider
import pf.Config
import pf.Draw
import pf.Input
import pf.Key
import pf.Launch
import pf.Light
import pf.Query
import pf.QueryResults
import pf.Scene

The HUD

Your game can’t lay out the UI itself, because it never learns the size of the window or how wide a string is. So the host does the layout. Your game describes the UI as a tree of Boxes and Text, and the host places them.

# A line of HUD text never wraps.
label : Str -> Ui.Text
label = |str| { ..Ui.label(str), wrap: None }

count_text : Model -> Str
count_text = |model| {
	total = List.len(start_pickups)
	collected = total - List.len(model.pickups)
	"Pickups: ${collected.to_str()} / ${total.to_str()}"
}

status_text : Model -> Str
status_text = |model| match model.phase {
	Playing if is_open(model) => "The door is open. Walk through it."
	Playing if List.is_empty(model.pickups) => "The door is opening."
	Playing => "Collect every pickup."
	Won => "You win! Press Escape to quit."
}

# A bottom point of the window needs a negative y offset to move up into it.
hud : Model -> List(Element)
hud = |model| {
	count = Box(Ui.panel(LeftTop, { x: 16.0, y: 16.0 }), [Text(label(count_text(model)))])
	status = Box(Ui.panel(CenterBottom, { x: 0.0, y: -16.0 }), [Text(label(status_text(model)))])
	[count, status]
}

count_text and status_text give the strings. They read only the Model, so the tests can check them without the host. status_text uses is_open from chapter 6, so it says that the door is open only once the door has risen all the way.
Text(...) is an Element that draws one string. label starts from Ui.label, which gives white text 24 pixels high, and turns wrapping off, so a line of the HUD never breaks.
Box(config, children) is an Element that holds other Elements. Ui.panel gives the config of a Box that floats over the window at one of its points, with padding, a see-through black background and round corners. Each Box here holds one Text.
The count sits at the top left. The status sits at the bottom centre, so it moves up by 16 pixels with a negative y.

hud returns the two Boxes as a list. They are the roots of the UI tree. The UI explains Boxes, Text and the layout rules.

view

Put the HUD in the Scene:

view : Model -> Vocabulary.Scene
view = |model| {
	ground = { ..Draw.default, id: ground_id, mesh: model.cube, pos: { x: 0.0, y: -0.1, z: 0.0 }, scale: { x: 6.0, y: 0.2, z: 6.0 }, tint: { r: 0.12, g: 0.25, b: 0.1 } }
	pip = { ..Draw.default, id: pip_id, mesh: model.pip, pos: model.pos, rot: Quat.from_yaw(model.yaw) }
	door = { ..Draw.default, id: door_id, mesh: model.cube, pos: { ..door_pos, y: door_pos.y + model.door_lift }, scale: V.scale(door_half, 2.0), tint: { r: 0.45, g: 0.12, b: 0.05 } }
	pickups = model.pickups.map(|p| Draw(pickup(model.sphere, p)))
	camera = Cam.look_at({ x: 0.0, y: 3.6, z: 4.8 }, { x: 0.0, y: 0.0, z: 0.3 })
	# The box's centre is half its height up, so it stands on Pip's feet.
	pip_box = Collider.box(pip_id, { ..model.pos, y: pip_half.y }, Quat.from_yaw(model.yaw), pip_half)
	# The doorway keeps its Collider while the door rises.
	door_box = Collider.box(door_id, door_pos, Quat.identity, door_half)
	colliders = [Collider(pip_box), Collider(door_box)].concat(model.pickups.map(|p| Collider(Collider.sphere(p.id, p.pos, pickup_radius))))
	queries = [Query.contacts_of(pip_id)]
	nodes = [Light(sky_light), Light(sunlight), Draw(ground), Draw(pip), Draw(door)].concat(pickups).concat(colliders)
	{ ..Scene.empty, camera, nodes, queries, ui: hud(model) }
}

Like the rest of the Scene, view builds the HUD again at each step, from the Model. The text changes as soon as the Model does, with no code to update it.

Test the HUD

Add these tests below the tests from chapter 6:

expect count_text(start) == "Pickups: 0 / 5"

# Each pickup that Pip collects counts up by one.
expect {
	after = step(start, Input.empty, contact_with(12), 0.1).model
	count_text(after) == "Pickups: 1 / 5"
}

expect status_text({ ..start, pickups: [] }) == "The door is opening."

expect status_text({ ..start, pickups: [], door_lift: door_height }) == "The door is open. Walk through it."

expect status_text({ ..start, phase: Won }) == "You win! Press Escape to quit."

Run the tests:

roc test main.roc

Play the game

In pip/, run:

roc main.roc

Collect the five pickups and watch the count go up. When the door opens, walk Pip through it. The HUD says that you have won. Press Escape to quit.

The game plays from start to end, but it is silent. Next, read 8. Sound. It plays a blip on each pickup, and adds music, a hum at the door and a creak as the door opens.
